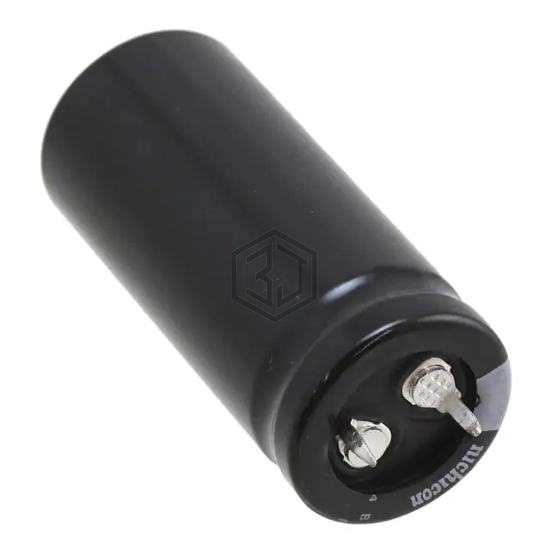

CAP ALUM 330UF 20% 315V SNAP
LGU2F331MELZ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 315V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can - Snap-In.
In Stock: 5,166
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.33 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.5295 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 350MXC330MEFC35X30 | Rubycon | CAP ALUM 330UF 20% 350V SNAP | 92% | View |
| LSK331M2G---3530S | Surge | CAP ALUM 400V POLAR | 88% | View |
| 200MXC330MEFC20X30 | Rubycon | CAP ALUM 330UF 20% 200V SNAP | 80% | View |
| 420MXH330MEFC25X45 | Rubycon | CAP ALUM 330UF 20% 420V SNAP | 73% | View |
| EKZN500ELL331MK16S | United Chemi-Con | CAP ALUM 330UF 20% 50V RADIAL | 66% | View |
| 50RX30330M12.5X20 | Rubycon | CAP ALUM 330UF 20% 50V RADIAL | 53% | View |
Submit your RFQ for LGU2F331MELZ and get a quote within 24 hours.
