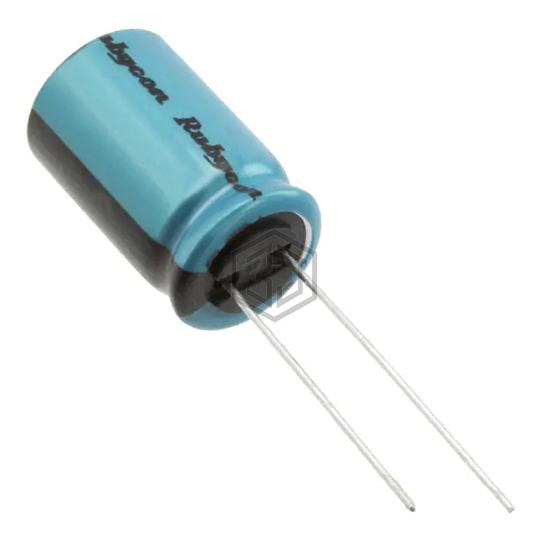

CAP ALUM 330UF 20% 50V RADIAL
50RX30330M12.5X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 330UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 130°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 1,565
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 130°C |
| Operating Temperature | -40°C ~ 130°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 700 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1 A @ 100 kHz |
| Impedance | 65 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 63RX30330M12.5X25 | Rubycon | CAP ALUM 330UF 20% 63V RADIAL | 93% | View |
| 63RX30330MG412.5X25 | Rubycon | CAP ALUM 330UF 20% 63V RADIAL | 93% | View |
| UBW1V331MPD1TD | Nichicon | CAP ALUM 330UF 20% 35V RADIAL | 80% | View |
| UBW1J331MHD1TO | Nichicon | CAP ALUM 330UF 20% 63V RADIAL | 79% | View |
| EEU-TP1E331 | Panasonic Electronic Components | CAP ALUM 330UF 20% 25V RADIAL | 77% | View |
| EEU-TP1E331B | Panasonic Electronic Components | CAP ALUM 330UF 20% 25V RADIAL | 77% | View |
Submit your RFQ for 50RX30330M12.5X20 and get a quote within 24 hours.
