CAP ALUM 5600UF 20% 35V SNAP

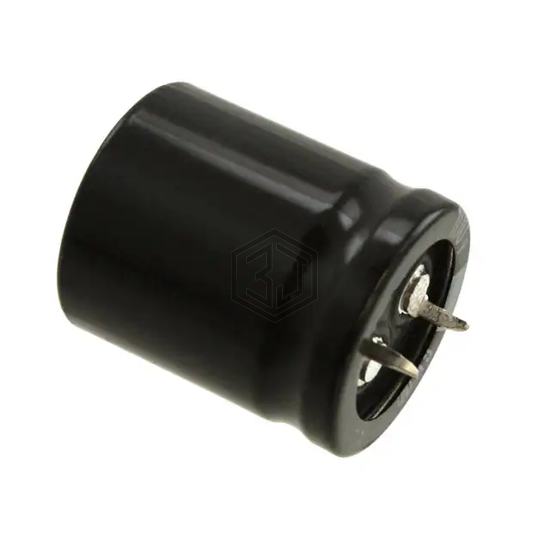

LGU1V562MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 5600UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 9,756
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.04 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.346 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH350VSN562AR25U | United Chemi-Con | CAP ALUM 5600UF 35V SNAP | 100% | View |
| EKMH350VSN562MR25S | United Chemi-Con | CAP ALUM 5600UF 20% 35V SNAP | 97% | View |
| B41252A5568M | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 25V SNAP | 85% | View |
| ELXZ100ELL562ML25S | United Chemi-Con | CAP ALUM 5600UF 20% 10V RADIAL | 75% | View |
| 50MXC5600MEFCSN25X40 | Rubycon | CAP ALUM 5600UF 20% 50V SNAP | 75% | View |
| UPA1C562MHD6 | Nichicon | CAP ALUM 5600UF 20% 16V RADIAL | 70% | View |
Submit your RFQ for LGU1V562MELA and get a quote within 24 hours.
