CAP ALUM 5600UF 20% 16V RADIAL

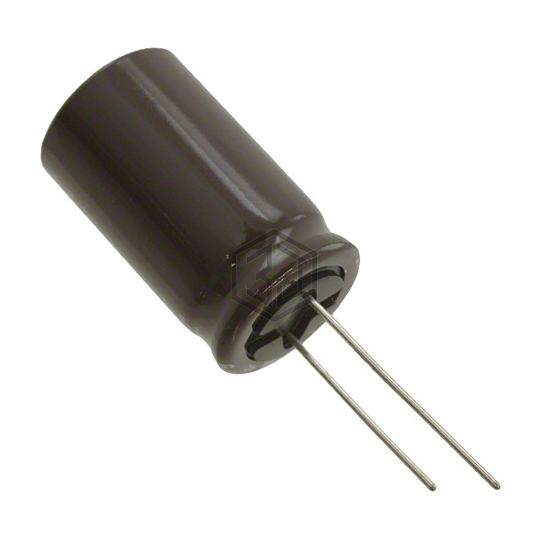

UPA1C562MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 5600UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,385
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.423 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.85 A @ 100 kHz |
| Impedance | 18 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41043A4568M | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 16V RADIAL | 96% | View |
| RXK562M1CBK-1636S | Surge | CAP ALUM 16V POLAR | 96% | View |
| LXZ16VB562M18X30LL | United Chemi-Con | CAP ALUM 5600UF 20% 16V RADIAL | 94% | View |
| ELXZ100ELL562ML25S | United Chemi-Con | CAP ALUM 5600UF 20% 10V RADIAL | 81% | View |
| 678D568M010FV3O | Vishay Sprague | CAP ALUM 5600UF 20% 10V RADIAL | 70% | View |
| UPA0J562MHD6TN | Nichicon | CAP ALUM 5600UF 20% 6.3V RADIAL | 69% | View |
