Cornell Dubilier Electronics (CDE)
CAP ALUM 12000UF 20% 16V SNAP

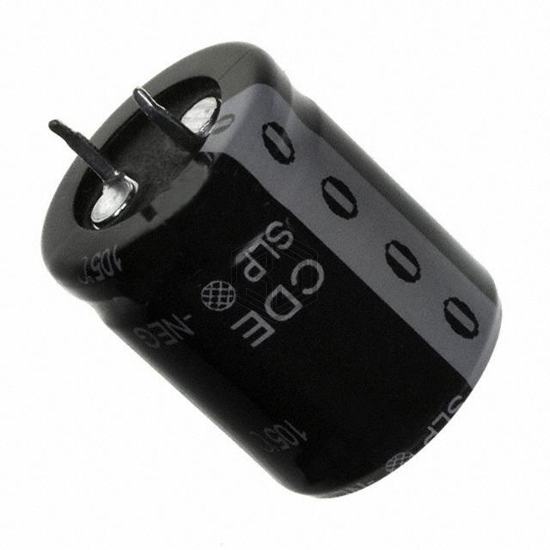

SLP123M016C3P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 12000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 5,314
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 12000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 55mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.63 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16MXG12000MEFCSN22X30 | Rubycon | CAP ALUM 12000UF 20% 16V SNAP | 87% | View |
| ELXZ100ELL123MM40S | United Chemi-Con | CAP ALUM 12000UF 20% 10V RADIAL | 82% | View |
| EKMH250VSN123MA25U | United Chemi-Con | CAP ALUM 12000UF 20% 25V SNAP | 80% | View |
| LGU1V123MELC | Nichicon | CAP ALUM 12000UF 20% 35V SNAP | 76% | View |
| 6.3YXG12000MEFC18X31.5 | Rubycon | CAP ALUM 12000UF 20% 6.3V RADIAL | 75% | View |
| LGY1H123MELC45 | Nichicon | CAP ALUM 12000UF 20% 50V SNAP | 73% | View |
Submit your RFQ for SLP123M016C3P3 and get a quote within 24 hours.
