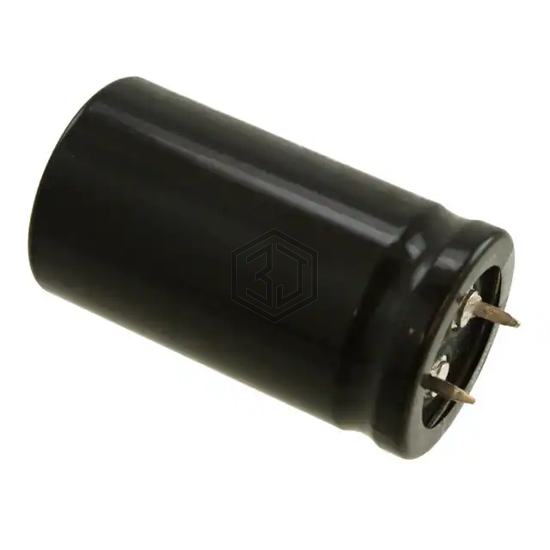

CAP ALUM 6800UF 20% 50V SNAP
LGU1H682MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 3,065
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.37 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.8755 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41252A8688M | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 63V SNAP | 86% | View |
| 688LMB080M2EH | Cornell Dubilier / Illinois Capacitor | CAP ALUM 6800UF 20% 80V SNAP | 74% | View |
| 16YXJ6800MGC16X31.5 | Rubycon | CAP ALUM 6800UF 20% 16V RADIAL | 71% | View |
| B41252A688M | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 80V SNAP | 70% | View |
| 6.3ZLH6800MEFCCT16X20 | Rubycon | CAP ALUM 6800UF 20% 6.3V RADIAL | 65% | View |
| ELXZ100ELL682MM25S | United Chemi-Con | CAP ALUM 6800UF 20% 10V RADIAL | 62% | View |
Submit your RFQ for LGU1H682MELA and get a quote within 24 hours.
