Cornell Dubilier / Illinois Capacitor
CAP ALUM 6800UF 20% 80V SNAP

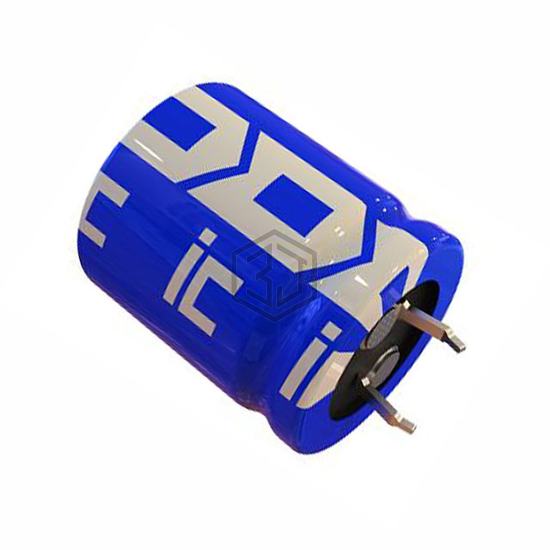

688LMB080M2EH is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 6800UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 6,830
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 60.95mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.12 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.15 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41252A688M | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 80V SNAP | 100% | View |
| B41252A8688M | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 63V SNAP | 89% | View |
| SLP682M050H3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 50V SNAP | 75% | View |
| LGU1H682MELA | Nichicon | CAP ALUM 6800UF 20% 50V SNAP | 74% | View |
| EKMH500VSN682MA30S | United Chemi-Con | CAP ALUM 6800UF 20% 50V SNAP | 71% | View |
| 16YXJ6800MGC16X31.5 | Rubycon | CAP ALUM 6800UF 20% 16V RADIAL | 60% | View |
Submit your RFQ for 688LMB080M2EH and get a quote within 24 hours.
