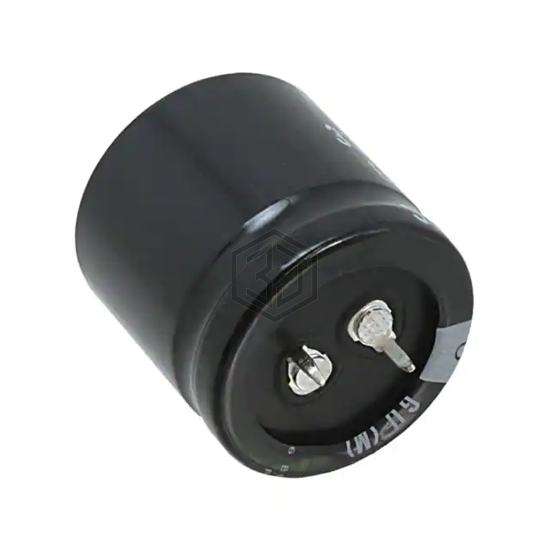

CAP ALUM 15000UF 20% 16V SNAP
LGU1C153MELB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 5,587
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.57 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.9555 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16VXG15000MEFCSN30X30 | Rubycon | CAP ALUM 15000UF 20% 16V SNAP | 99% | View |
| MAL215865153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 16V SNAP | 83% | View |
| SLP153M010A5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 15000UF 20% 10V SNAP | 82% | View |
| 10MXC15000MEFC25X30 | Rubycon | CAP ALUM 15000UF 20% 10V SNAP | 76% | View |
| 6.3YXG15000MEFCGC18X35.5 | Rubycon | CAP ALUM 15000UF 20% 6.3V RADIAL | 67% | View |
| EKZN100ELL153MM40S | United Chemi-Con | CAP ALUM 15000UF 20% 10V RADIAL | 61% | View |
