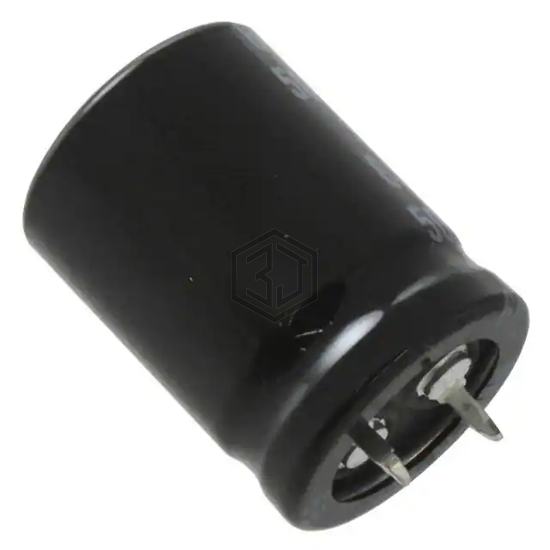

CAP ALUM 150UF 20% 350V SNAP
LGN2V151MELZ30 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 350V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can - Snap-In.
In Stock: 5,513
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 820 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.1726 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508A9157M000 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 400V SNAP | 92% | View |
| MAL215976151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 400V SNAP | 91% | View |
| EKMT451VSN151MP40S | United Chemi-Con | CAP ALUM 150UF 20% 450V SNAP | 73% | View |
| B43252A2157M000 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 200V SNAP | 72% | View |
| MAL212049151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 100V T/H | 71% | View |
| EEU-FS2A151B | Panasonic Electronic Components | CAP ALUM 150UF 20% 100V RADIAL | 70% | View |
