Vishay Beyschlag/Draloric/BC Components
CAP ALUM 150UF 20% 100V T/H

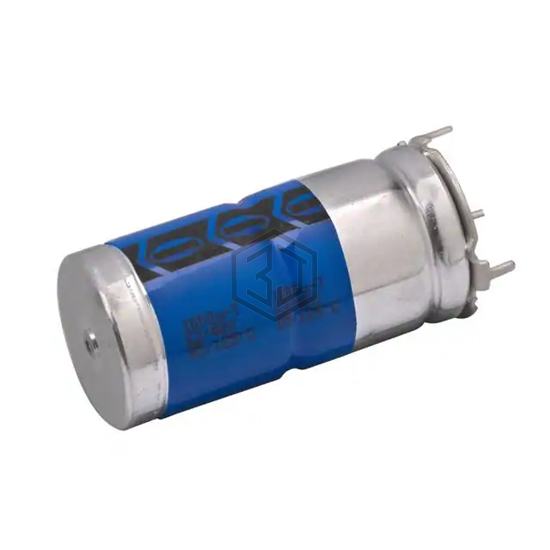

MAL212049151E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 150UF 20% 100V T/H. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 100 V, package / case Radial, Can - Mounting Ring - 4 Lead.
In Stock: 5,001
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 266mOhm |
| Lifetime @ Temp. | 8000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | - |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.14 A @ 10 kHz |
| Impedance | 262 mOhms |
| Lead Spacing | 0.325" (8.25mm) |
| Size / Dimension | 0.591" Dia x 1.181" L (15.00mm x 30.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Mounting Ring - 4 Lead |
Submit your RFQ for MAL212049151E3 and get a quote within 24 hours.
