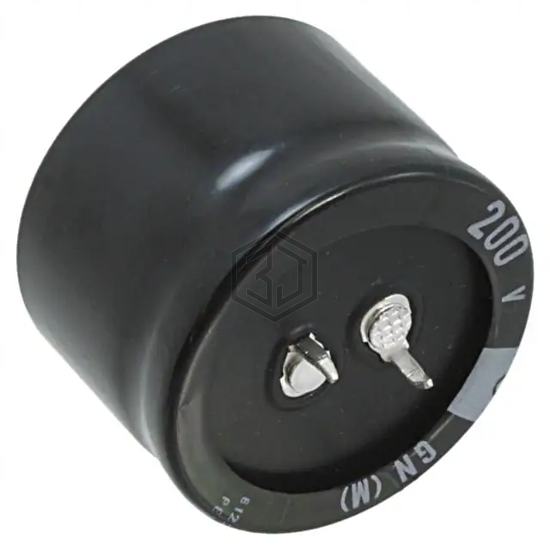

CAP ALUM 1000UF 20% 200V SNAP
LGN2D102MELC25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 5,819
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.45 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43509B2108M000 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 200V SNAP | 96% | View |
| LGG2P102MELB35 | Nichicon | CAP ALUM 1000UF 20% 220V SNAP | 96% | View |
| EKYA630ELL102ML25S | United Chemi-Con | CAP ALUM 1000UF 20% 63V RADIAL | 65% | View |
| 10AX1000MEFC10X12.5 | Rubycon | CAP ALUM 1000UF 20% 10V RADIAL | 56% | View |
| 100MXC1000MEFCSN25X30 | Rubycon | CAP ALUM 1000UF 20% 100V SNAP | 56% | View |
| MAL214691105E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 55% | View |
Submit your RFQ for LGN2D102MELC25 and get a quote within 24 hours.
