CAP ALUM 1000UF 20% 220V SNAP

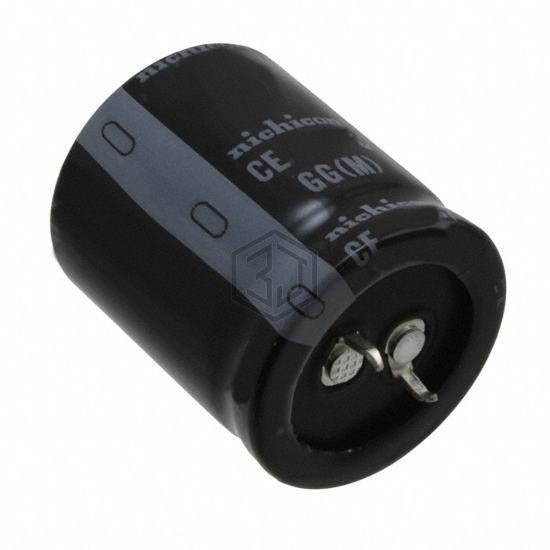

LGG2P102MELB35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 220V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 220 V, package / case Radial, Can - Snap-In.
In Stock: 4,487
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 220 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.33 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.495 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGN2D102MELC25 | Nichicon | CAP ALUM 1000UF 20% 200V SNAP | 96% | View |
| B43509B2108M000 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 200V SNAP | 91% | View |
| 80ZLJ1000MGC18X35.5 | Rubycon | CAP ALUM 1000UF 20% 80V RADIAL | 68% | View |
| EKYA630ELL102ML25S | United Chemi-Con | CAP ALUM 1000UF 20% 63V RADIAL | 65% | View |
| 25ZL1000MEFCKM12.5X20 | Rubycon | CAP ALUM 1000UF 20% 25V RADIAL | 58% | View |
| 100MXC1000MEFCSN25X30 | Rubycon | CAP ALUM 1000UF 20% 100V SNAP | 56% | View |
Submit your RFQ for LGG2P102MELB35 and get a quote within 24 hours.
