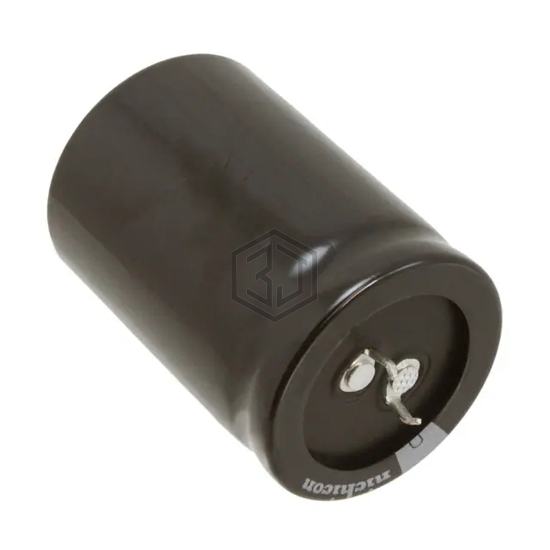

CAP ALUM 680UF 20% 450V SNAP
LGG2W681MELC50 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 7,408
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.91 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.7313 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400MXK680MEFCSN35X35 | Rubycon | CAP ALUM 680UF 20% 400V SNAP | 95% | View |
| LP681M250E9P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 680UF 20% 250V SNAP | 82% | View |
| B43508E2687M82 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 250V SNAP | 75% | View |
| 381LQ681M160J012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 680UF 20% 160V SNAP | 73% | View |
| EKY-500ELL681MK30S | United Chemi-Con | CAP ALUM 680UF 20% 50V RADIAL | 67% | View |
| MAL205859681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 100V SNAP | 60% | View |
