Cornell Dubilier Electronics (CDE)
CAP ALUM 680UF 20% 250V SNAP

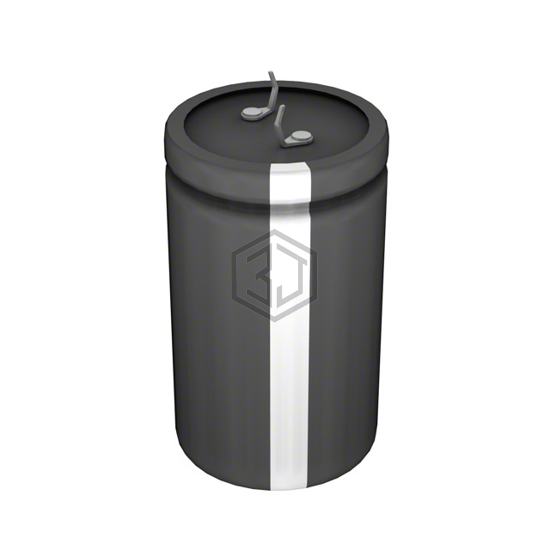

LP681M250E9P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 680UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 8,626
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 370mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.92 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.688 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508E2687M82 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 250V SNAP | 99% | View |
| LGN2Z681MELA30 | Nichicon | CAP ALUM 680UF 20% 180V SNAP | 86% | View |
| 381LQ681M160J012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 680UF 20% 160V SNAP | 81% | View |
| EKY-500ELL681MK30S | United Chemi-Con | CAP ALUM 680UF 20% 50V RADIAL | 68% | View |
| MAL205859681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 100V SNAP | 60% | View |
| MAL214631681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 50V RADIAL | 57% | View |
Submit your RFQ for LP681M250E9P3 and get a quote within 24 hours.
