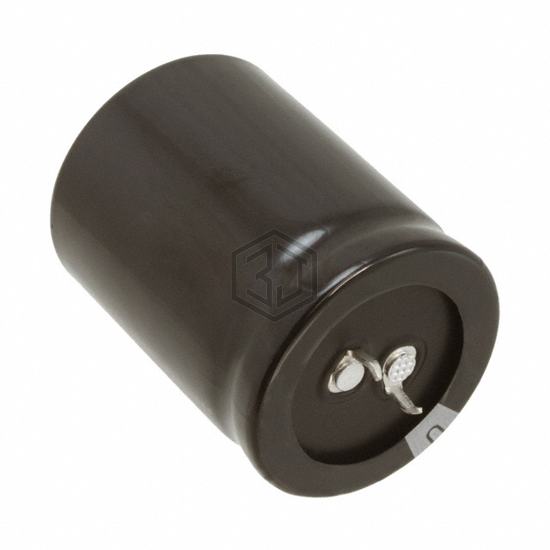

CAP ALUM 3300UF 20% 160V SNAP
LGG2C332MELC45 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 9,283
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.65 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 383LX332M160N052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 20% 160V SNAP | 98% | View |
| MAL215849332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 100V SNAP | 80% | View |
| EKMH800VSN332MA30S | United Chemi-Con | CAP ALUM 3300UF 20% 80V SNAP | 62% | View |
| 25YXG3300M18X20 | Rubycon | CAP ALUM 3300UF 20% 25V RAD TH | 56% | View |
| B41505A6338M000 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 50V SNAP | 54% | View |
| 6.3ZLG3300MEFC12.5X20 | Rubycon | CAP ALUM 3300UF 20% 6.3V RADIAL | 53% | View |
Submit your RFQ for LGG2C332MELC45 and get a quote within 24 hours.
