CAP ALUM 3300UF 20% 50V SNAP

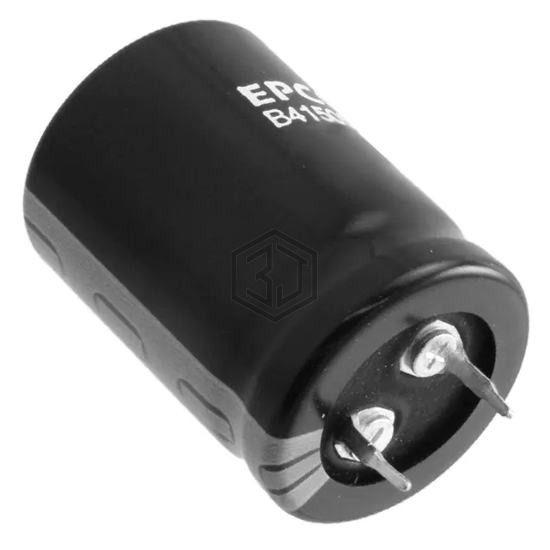

B41505A6338M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 3300UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 5,927
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 56mOhm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.8 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 60 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225638332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 63V SNAP | 85% | View |
| 16RX303300MGC16X31.5 | Rubycon | CAP ALUM 3300UF 20% 16V RADIAL | 67% | View |
| ELXZ6R3ELL332MK20S | United Chemi-Con | CAP ALUM 3300UF 20% 6.3V RADIAL | 59% | View |
| 6.3ZLG3300MEFC12.5X20 | Rubycon | CAP ALUM 3300UF 20% 6.3V RADIAL | 58% | View |
| LGG2C332MELC45 | Nichicon | CAP ALUM 3300UF 20% 160V SNAP | 54% | View |
| MAL215849332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 100V SNAP | 52% | View |
Submit your RFQ for B41505A6338M000 and get a quote within 24 hours.
