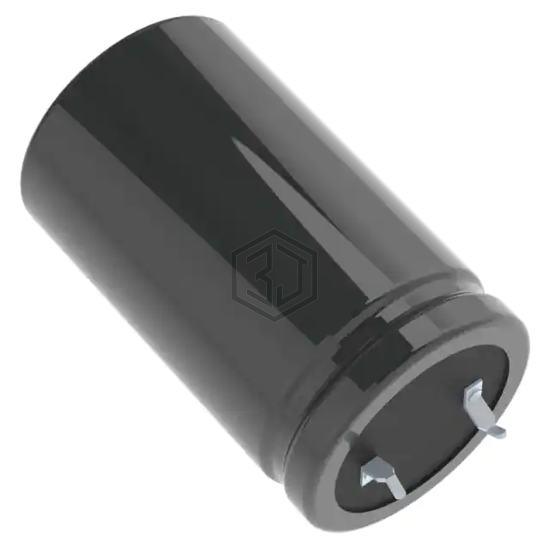

CAP ALUM 82UF 20% 420V SNAP
LAKW6820MELZ35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 6,694
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 640 mA @ 120 Hz |
| Ripple Current @ High Frequency | 736 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43255A5826M | EPCOS - TDK Electronics | CAP ALUM 82UF 20% 450V SNAP | 91% | View |
| EKXL421ELL820MK45S | United Chemi-Con | CAP ALUM 82UF 20% 420V RADIAL TH | 80% | View |
| 400BXW82MEFR16X30 | Rubycon | CAP ALUM 82UF 20% 400V RADIAL | 78% | View |
| UCS2G820MHD1TN | Nichicon | CAP ALUM 82UF 20% 400V RADIAL | 77% | View |
| UCY2G820MHD3 | Nichicon | CAP ALUM 82UF 20% 400V RADIAL | 77% | View |
| LAR2W820MELZ25 | Nichicon | CAP ALUM 82UF 20% 450V SNAP | 77% | View |
Submit your RFQ for LAKW6820MELZ35 and get a quote within 24 hours.
