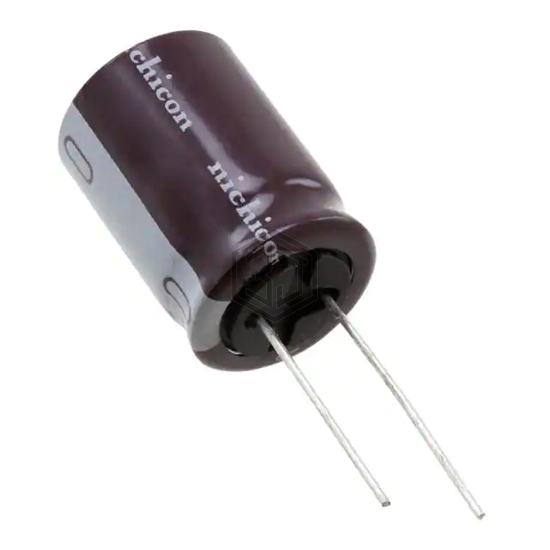

CAP ALUM 82UF 20% 400V RADIAL
UCY2G820MHD3 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 8,135
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 765 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.53 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCS2G820MHD1TN | Nichicon | CAP ALUM 82UF 20% 400V RADIAL | 100% | View |
| UCY2G820MHD3TN | Nichicon | CAP ALUM 82UF 20% 400V RADIAL | 100% | View |
| EKXG401ETD820MM25S | United Chemi-Con | CAP ALUM 82UF 20% 400V RADIAL | 95% | View |
| 400BXW82MEFR16X30 | Rubycon | CAP ALUM 82UF 20% 400V RADIAL | 95% | View |
| EKXL421ELL820MK45S | United Chemi-Con | CAP ALUM 82UF 20% 420V RADIAL TH | 93% | View |
| EKXL421ELL820MU35S | United Chemi-Con | CAP ALUM 82UF 20% 420V RADIAL TH | 93% | View |
