CAP ALUM POL HY 33UF 20% 50V SMD

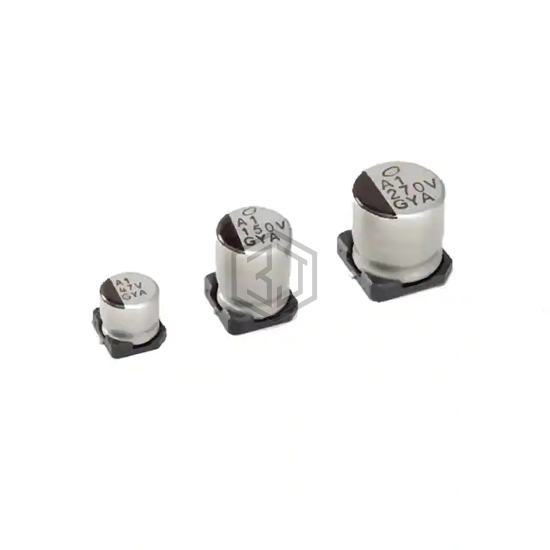

GYA1H330MCW1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POL HY 33UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 5,400
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 40mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 165 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.343" (8.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
