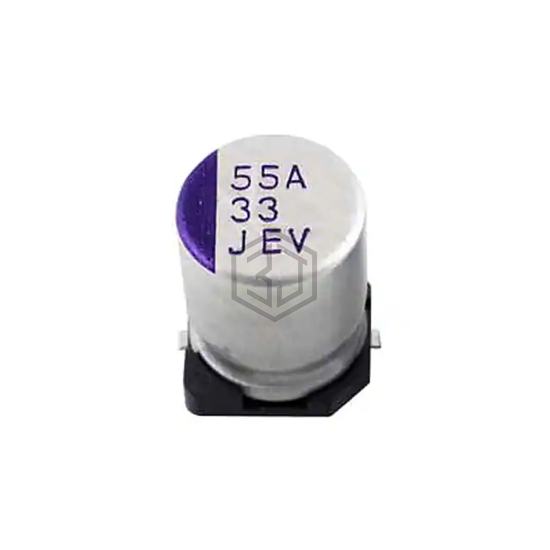

CAP ALUM POLY HYB 33UF 63V SMD
63PHV33M8X10.5 is a Aluminum - Polymer Capacitors manufactured by Rubycon. CAP ALUM POLY HYB 33UF 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 135°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 3,968
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 40mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 135°C |
| Operating Temperature | -55°C ~ 135°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 105 mA @ 100 Hz |
| Ripple Current @ High Frequency | 2.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 63PSV33M8X10.5 | Rubycon | CAP ALUM POLY HYB 33UF 63V SMD | 83% | View |
| GYC1J330MCQ1GS | Nichicon | CAP ALUM HYBRID 33UF 20% 63V SMD | 74% | View |
| EEH-ZF1J330V | Panasonic Electronic Components | CAP ALUM POLY HYB 33UF 63V SMD | 62% | View |
| EEH-ZF1J330P | Panasonic Electronic Components | CAP ALUM POLY HYB 33UF 63V SMD | 62% | View |
| EEH-ZE1J330V | Panasonic Electronic Components | CAP ALUM POLY 33UF 20% 63V SMD | 60% | View |
| 63PLV33M8X10.5 | Rubycon | CAP ALUM POLY HYB 33UF 63V SMD | 59% | View |
