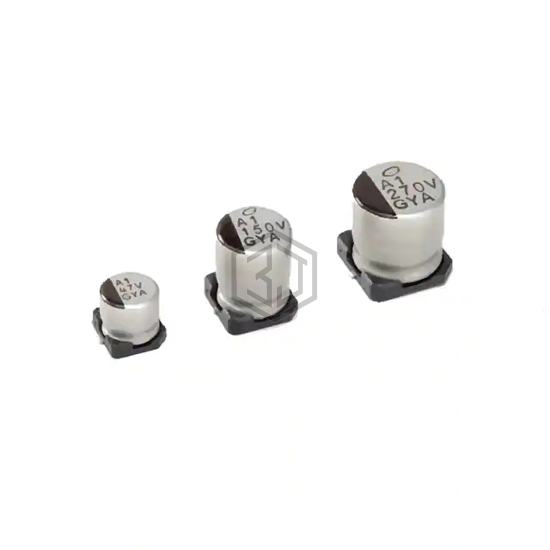

CAP ALUM POL HY 270UF 20% 16V SM
GYA1C271MCW1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POL HY 270UF 20% 16V SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 4,970
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 255 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HBW271M1CTR-0810S | Surge | CAP ALUMHYB 270UF 20% 16V SMD | 87% | View |
| GYD1E271MCW1GS | Nichicon | CAP ALUM POLY HYB 270UF 25V SMD | 84% | View |
| HZC277M035G24VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM POLY HYB 270UF 35V SMD | 69% | View |
| EEH-ZF1E271V | Panasonic Electronic Components | CAP ALUM POLY HYB 270UF 25V SMD | 61% | View |
| 35PSV270M10X10.5 | Rubycon | CAP ALUM POLY HYB 270UF 35V SMD | 61% | View |
| 35PHV270M10X10.5 | Rubycon | CAP ALUM POLY HYB 270UF 35V SMD | 53% | View |
Submit your RFQ for GYA1C271MCW1GS and get a quote within 24 hours.
