Cornell Dubilier Electronics (CDE)
CAP ALUM POLY HYB 270UF 35V SMD

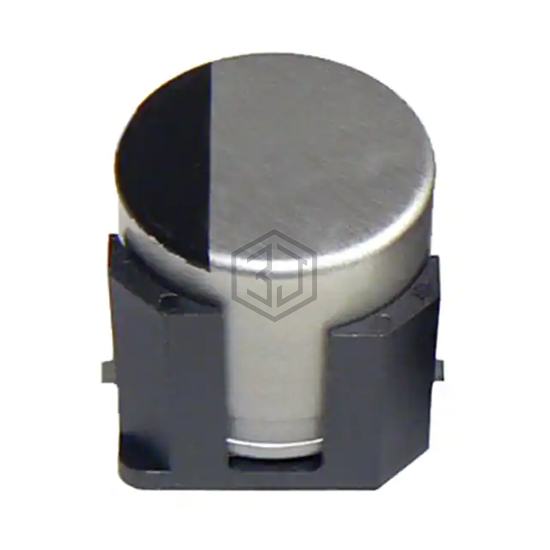

HZC277M035G24VT-F is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM POLY HYB 270UF 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 3,811
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 20mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Features | - |
| Ripple Current @ Low Frequency | 200 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35PHV270M10X10.5 | Rubycon | CAP ALUM POLY HYB 270UF 35V SMD | 83% | View |
| 35PSV270M10X10.5 | Rubycon | CAP ALUM POLY HYB 270UF 35V SMD | 81% | View |
| EEH-ZE1V271V | Panasonic Electronic Components | CAP ALUM POLY 270UF 20% 35V SMD | 71% | View |
| GYA1C271MCW1GS | Nichicon | CAP ALUM POL HY 270UF 20% 16V SM | 69% | View |
| EEH-ZF1E271V | Panasonic Electronic Components | CAP ALUM POLY HYB 270UF 25V SMD | 66% | View |
| GYC1V271MCQ1GS | Nichicon | CAP ALUM HYBRD 270UF 20% 35V SMD | 66% | View |
