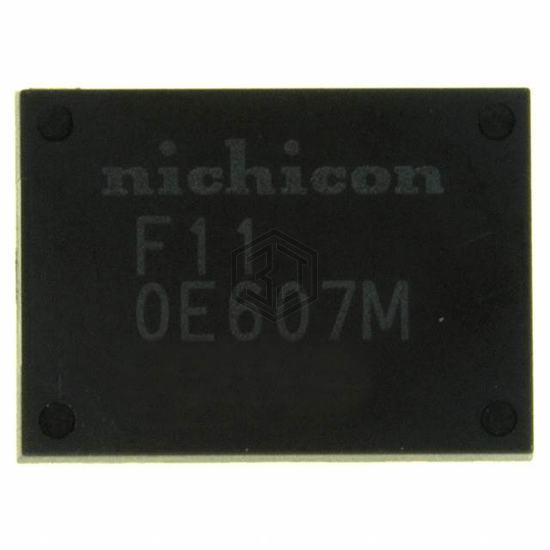

CAP ALUM 600UF 20% 2.5V SMD
F110E607MFK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 600UF 20% 2.5V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Nonstandard SMD.
In Stock: 9,847
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 5mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 6.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.658" L x 0.477" W (16.70mm x 12.10mm) |
| Height - Seated (Max) | 0.098" (2.50mm) |
| Surface Mount Land Size | 0.657" L x 0.476" W (16.70mm x 12.10mm) |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard SMD |
F110E607MFK is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A720V687M002APE003 | KEMET | 680.UF 2.0V | 76% | View |
| F110J607MFK | Nichicon | CAP ALUM 600UF 20% 6.3V SMD | 71% | View |
| F110G807MFK | Nichicon | CAP ALUM 800UF 20% 4V SMD | 66% | View |
| F110E128MFK | Nichicon | CAP ALUM 1200UF 20% 2.5V SMD | 64% | View |
| EMVY350ARA561MKE0S | United Chemi-Con | CAP ALUM 560UF 20% 35V SMD | 50% | View |
| AFK567M50P44VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 50V SMD | 50% | View |
Submit your RFQ for F110E607MFK and get a quote within 24 hours.
