CAP ALUM 800UF 20% 4V SMD

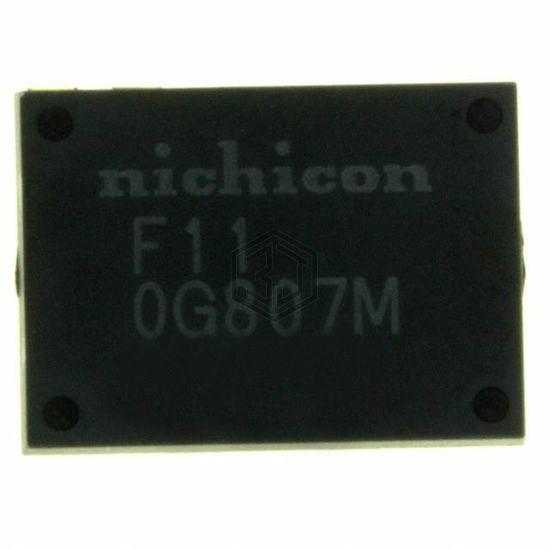

F110G807MFK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 800UF 20% 4V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 4 V, package / case Nonstandard SMD.
In Stock: 2,267
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 5mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 6.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.658" L x 0.477" W (16.70mm x 12.10mm) |
| Height - Seated (Max) | 0.098" (2.50mm) |
| Surface Mount Land Size | 0.657" L x 0.476" W (16.70mm x 12.10mm) |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard SMD |
F110G807MFK is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214097302E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 6.3V SMD | 58% | View |
| UWT0G681MNL1GS | Nichicon | CAP ALUM 680UF 20% 4V SMD | 56% | View |
| MAL214099015E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 35V SMD | 54% | View |
| MAL214099117E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 50V SMD | 54% | View |
| MAL214099116E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 50V SMD | 54% | View |
| 108SVL6R3MGW | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1000UF 20% 6.3V SMD | 53% | View |
