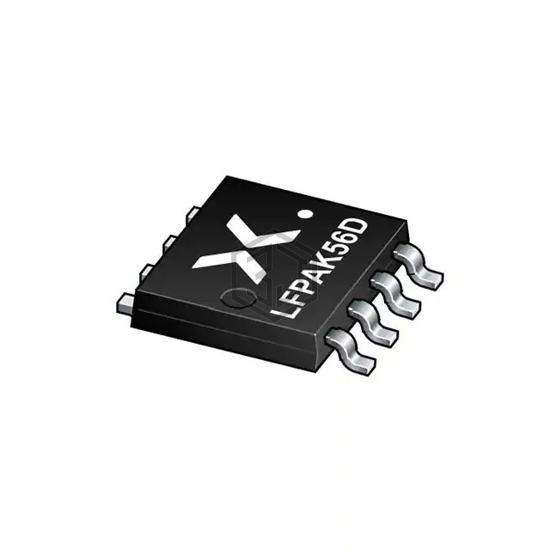

PSMN4R2-40VSH - DUAL N-CHANNEL 4
PSMN4R2-40VSHX is a Transistors - FETs, MOSFETs - Arrays manufactured by Nexperia USA Inc.. PSMN4R2-40VSH - DUAL N-CHANNEL 4. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1205, 8-LFPAK56, power - max 85W (Ta).
In Stock: 2,179
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Half Bridge) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 98A (Ta) |
| Rds On (Max) @ Id, Vgs | 4.2mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 3.6V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 37nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 2590pF @ 25V |
| Power - Max | 85W (Ta) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-1205, 8-LFPAK56 |
| Supplier Device Package | LFPAK56D |
Submit your RFQ for PSMN4R2-40VSHX and get a quote within 24 hours.
