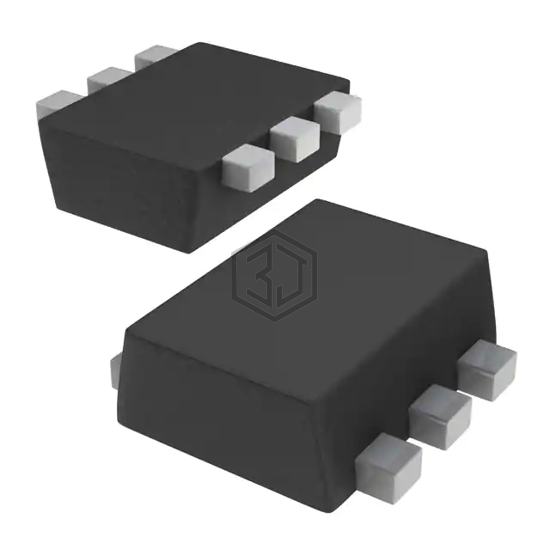

PMDT290UCE/SOT666/SOT6
PMDT290UCEH is a Transistors - FETs, MOSFETs - Arrays manufactured by Nexperia USA Inc.. PMDT290UCE/SOT666/SOT6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-563, SOT-666, power - max 330mW (Ta), 1.09W (Tc).
In Stock: 8,422
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| FET Type | N and P-Channel Complementary |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 800mA (Ta), 550mA (Ta) |
| Rds On (Max) @ Id, Vgs | 380mOhm @ 500mA, 4.5V, 850mOhm @ 400mA, 4.5V |
| Vgs(th) (Max) @ Id | 950mV @ 250µA, 1.3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 680pC @ 4.5V, 1.14nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 83pF @ 10V, 87pF @ 10V |
| Power - Max | 330mW (Ta), 1.09W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | SOT-666 |
Submit your RFQ for PMDT290UCEH and get a quote within 24 hours.
