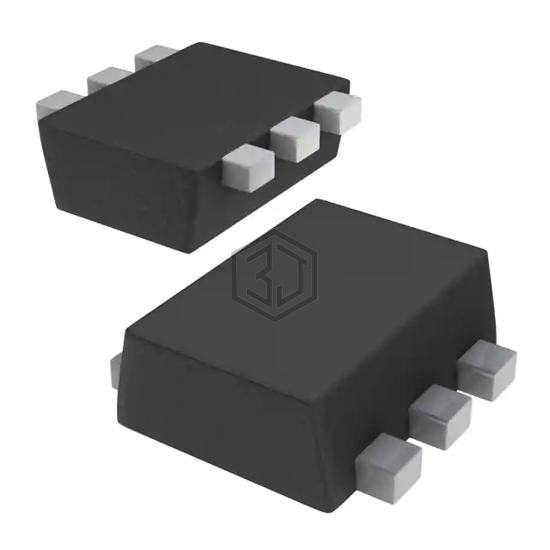

NX1029X/SOT666/SOT6
NX1029XH is a Transistors - FETs, MOSFETs - Arrays manufactured by Nexperia USA Inc.. NX1029X/SOT666/SOT6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-563, SOT-666, power - max 330mW (Ta), 1.09W (Tc).
In Stock: 5,505
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| FET Type | N and P-Channel Complementary |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 50V |
| Current - Continuous Drain (Id) @ 25°C | 330mA (Ta), 170mA (Ta) |
| Rds On (Max) @ Id, Vgs | 1.6Ohm @ 500mA, 10V, 7.5Ohm @ 100mA, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 600pC @ 4.5V, 350pC @ 5V |
| Input Capacitance (Ciss) (Max) @ Vds | 50pF @ 10V, 36pF @ 25V |
| Power - Max | 330mW (Ta), 1.09W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | SOT-666 |
Submit your RFQ for NX1029XH and get a quote within 24 hours.
