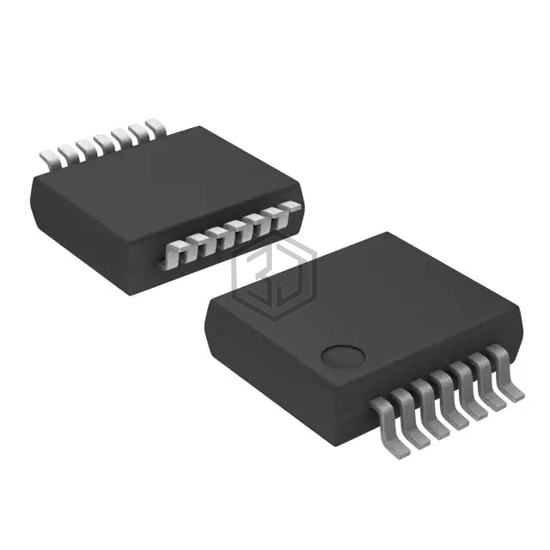

IC GATE NOR 4CH 2-INP 14SSOP
74LVC02ADB,118 is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC GATE NOR 4CH 2-INP 14SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.2V ~ 3.6V, package / case 14-SSOP (0.209", 5.30mm Width).
In Stock: 1,904
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NOR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 1.2V ~ 3.6V |
| Current - Quiescent (Max) | 40 µA |
| Current - Output High, Low | 24mA, 24mA |
| Logic Level - Low | 0.12V ~ 0.8V |
| Logic Level - High | 1.08V ~ 2V |
| Max Propagation Delay @ V, Max CL | 4.4ns @ 3.3V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SSOP |
| Package / Case | 14-SSOP (0.209", 5.30mm Width) |
74LVC02ADB,118 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74LVC02ADB,112 | NXP USA Inc. | NOR GATE, LVC/LCX/Z SERIES, 4-FU | 100% | View |
| 74LVC02AD,118 | Nexperia USA Inc. | IC GATE NOR 4CH 2-INP 14SO | 100% | View |
| 74LVC02ABQ-Q100X | Nexperia USA Inc. | IC GATE NOR 4CH 2-INP 14DHVQFN | 91% | View |
| SN74LVC02APWT | Texas Instruments | IC GATE NOR 4CH 2-INP 14TSSOP | 74% | View |
| SN74LVC02ADR | Texas Instruments | IC GATE NOR 4CH 2-INP 14SOIC | 74% | View |
| SN74LVC02ANSR | Texas Instruments | IC GATE NOR 4CH 2-INP 14SOP | 74% | View |
Submit your RFQ for 74LVC02ADB,118 and get a quote within 24 hours.
