NOR GATE, LVC/LCX/Z SERIES, 4-FU

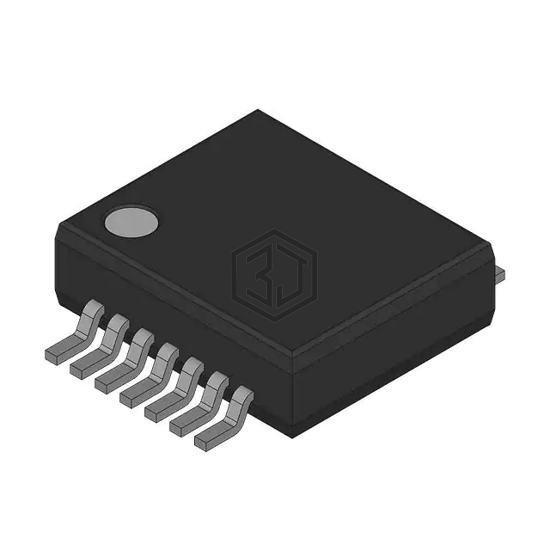

74LVC02ADB,112 is a Logic - Gates and Inverters manufactured by NXP USA Inc.. NOR GATE, LVC/LCX/Z SERIES, 4-FU. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.2V ~ 3.6V, package / case 14-SSOP (0.209", 5.30mm Width).
In Stock: 8,108
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NOR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 1.2V ~ 3.6V |
| Current - Quiescent (Max) | 40 µA |
| Current - Output High, Low | 24mA, 24mA |
| Logic Level - Low | 0.12V ~ 0.8V |
| Logic Level - High | 1.08V ~ 2V |
| Max Propagation Delay @ V, Max CL | 4.4ns @ 3.3V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SSOP |
| Package / Case | 14-SSOP (0.209", 5.30mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74LVC02AD,118 | Nexperia USA Inc. | IC GATE NOR 4CH 2-INP 14SO | 100% | View |
| SN74LVC02ADR | Texas Instruments | IC GATE NOR 4CH 2-INP 14SOIC | 74% | View |
| SN74LVC02ANSR | Texas Instruments | IC GATE NOR 4CH 2-INP 14SOP | 74% | View |
| SN74LVC02AMPWREP | Texas Instruments | IC GATE NOR 4CH 2-INP 14TSSOP | 71% | View |
| SN74LVC02AQDRQ1 | Texas Instruments | IC GATE NOR 4CH 2-INP 14SOIC | 71% | View |
| 5962-8761203VDA | Texas Instruments | IC GATE NOR 4CH 2-INP 14CFP | 67% | View |
Submit your RFQ for 74LVC02ADB,112 and get a quote within 24 hours.
