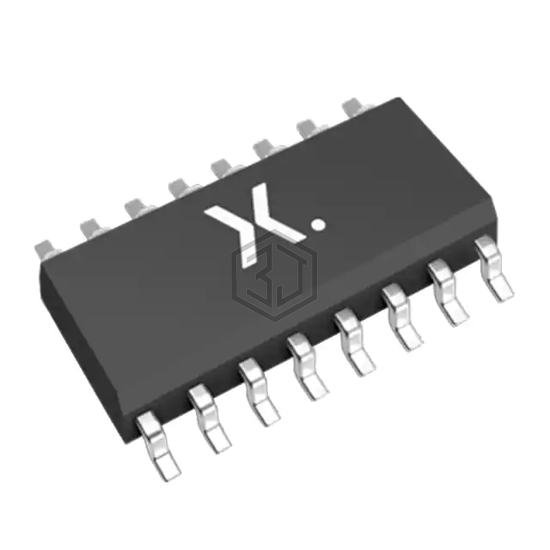

IC SWITCH QUAD 1X1 16SOIC
74HC4316D,652 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Nexperia USA Inc.. IC SWITCH QUAD 1X1 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-SOIC (0.154", 3.90mm Width), number of circuits 4.
In Stock: 4,122
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 135Ohm |
| Channel-to-Channel Matching (ΔRon) | 6Ohm |
| Voltage - Supply, Single (V+) | 2V ~ 10V |
| Voltage - Supply, Dual (V±) | ±1V ~ 5V |
| Switch Time (Ton, Toff) (Max) | 16ns, 16ns |
| -3db Bandwidth | 160MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -60dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SO |
74HC4316D,652 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74HC4316PW,118 | Nexperia USA Inc. | IC SWITCH QUAD 1X1 16TSSOP | 100% | View |
| 74HC4316D,653 | Nexperia USA Inc. | IC SWITCH QUAD 1X1 16SOIC | 100% | View |
| 74LV4066PW,118 | Nexperia USA Inc. | IC SWITCH QUAD 1X2 14TSSOP | 74% | View |
| 74LV4066D,118 | Nexperia USA Inc. | IC SWITCH QUAD 1X2 14SOIC | 74% | View |
| 74LV4066DB,118-NXP | NXP USA Inc. | SPST, 4 FUNC, 1 CHANNEL, CMOS, P | 74% | View |
| STG3157CTR | STMicroelectronics | IC SWITCH SPDT SINGLE SOT323-6L | 70% | View |
