SPST, 4 FUNC, 1 CHANNEL, CMOS, P

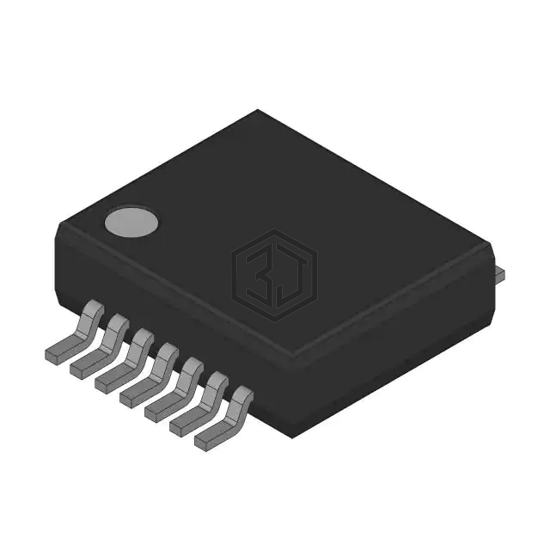

74LV4066DB,118-NXP is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by NXP USA Inc.. SPST, 4 FUNC, 1 CHANNEL, CMOS, P. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 14-SSOP (0.209", 5.30mm Width), number of circuits 4.
In Stock: 5,471
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 35Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 1V ~ 6V |
| Voltage - Supply, Dual (V±) | 1V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 16ns, 28ns |
| -3db Bandwidth | 200MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF |
| Current - Leakage (IS(off)) (Max) | 2µA |
| Crosstalk | -60dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 14-SSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74LV4066PW,118 | Nexperia USA Inc. | IC SWITCH QUAD 1X2 14TSSOP | 100% | View |
| 74LV4066D,118 | Nexperia USA Inc. | IC SWITCH QUAD 1X2 14SOIC | 100% | View |
| 74LV4066D,112 | Nexperia USA Inc. | IC SWITCH QUAD 1X2 14SOIC | 100% | View |
| 74HC4316PW,118 | Nexperia USA Inc. | IC SWITCH QUAD 1X1 16TSSOP | 74% | View |
| 74HC4316D,653 | Nexperia USA Inc. | IC SWITCH QUAD 1X1 16SOIC | 74% | View |
| STG3157CTR | STMicroelectronics | IC SWITCH SPDT SINGLE SOT323-6L | 61% | View |
Submit your RFQ for 74LV4066DB,118-NXP and get a quote within 24 hours.
