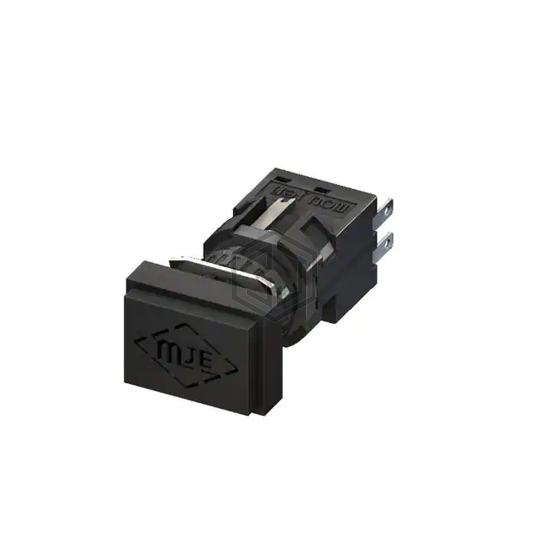

BUZZER MAGN 6V 18X24MM PNL MNT
M6Z-06S is a Alarms, Buzzers, and Sirens manufactured by Moujen. BUZZER MAGN 6V 18X24MM PNL MNT. Key specifications: mounting type Panel Mount, Front, operating temperature -25°C ~ 55°C, voltage - rated 6 V, current - supply 7mA DC, 20mA AC.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | AC, DC |
| Voltage - Rated | 6 V |
| Voltage Range | - |
| Frequency | 2kHz |
| Technology | Magnetic |
| Operating Mode | Steady, Slow, Quick |
| Duration | - |
| Sound Pressure Level (SPL) | 80dB @ 6V, 10cm |
| Current - Supply | 7mA DC, 20mA AC |
| Port Location | Top |
| Operating Temperature | -25°C ~ 55°C |
| Approval Agency | CE |
| Ratings | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mounting Type | Panel Mount, Front |
| Termination | Quick Connect Tab - 0.110" (2.80mm) |
| Size / Dimension | 0.709" L x 0.945" W (18.00mm x 24.00mm) |
| Height - Seated (Max) | 0.343" (8.70mm) |
Submit your RFQ for M6Z-06S and get a quote within 24 hours.
