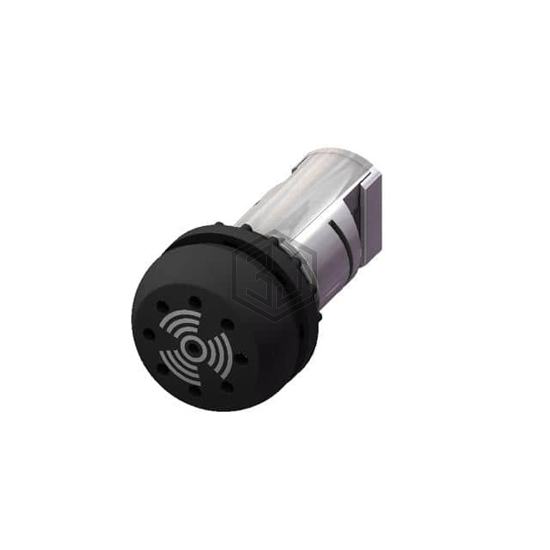

BUZZER MAGN 110V 29.6MM PNL MNT
M22BZ-110ACF is a Alarms, Buzzers, and Sirens manufactured by Moujen. BUZZER MAGN 110V 29.6MM PNL MNT. Key specifications: mounting type Panel Mount, operating temperature -20°C ~ 65°C, voltage - rated 110 V, current - supply 50mA.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | AC |
| Voltage - Rated | 110 V |
| Voltage Range | - |
| Frequency | 2.5kHz |
| Technology | Magnetic |
| Operating Mode | Pulse, Fast |
| Duration | - |
| Sound Pressure Level (SPL) | 80dB @ 110V, 100cm |
| Current - Supply | 50mA |
| Port Location | - |
| Operating Temperature | -20°C ~ 65°C |
| Approval Agency | CE |
| Ratings | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mounting Type | Panel Mount |
| Termination | Screw Terminals |
| Size / Dimension | 1.165" Dia (29.60mm) |
| Height - Seated (Max) | 0.437" (11.10mm) |
Submit your RFQ for M22BZ-110ACF and get a quote within 24 hours.
