IC HALF-BRIDGE PWM 8-SOIC

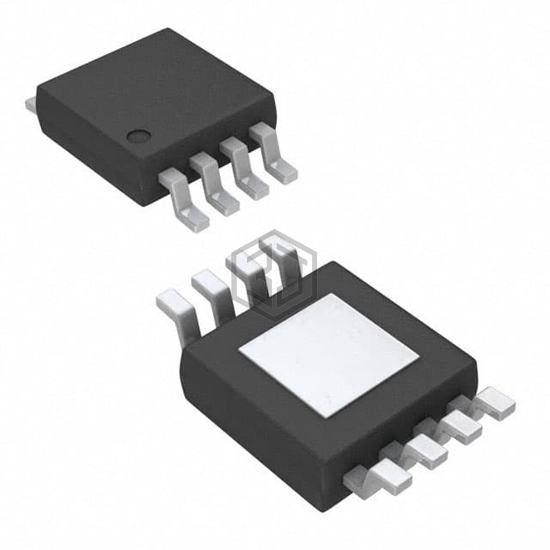

MPQ8039GN is a PMIC - Full, Half-Bridge Drivers manufactured by Monolithic Power Systems Inc.. IC HALF-BRIDGE PWM 8-SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 7.5V ~ 24V, package / case 8-SOIC (0.154", 3.90mm Width) Exposed Pad.
In Stock: 4,550
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | General Purpose |
| Interface | PWM |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | 100mOhm |
| Current - Output / Channel | 4.25A |
| Current - Peak Output | 9A |
| Voltage - Supply | 7.5V ~ 24V |
| Voltage - Load | 7.5V ~ 24V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Features | - |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOIC-EP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MPQ8039GN-Z | Monolithic Power Systems Inc. | IC HALF-BRIDGE PWM 8-SOIC | 100% | View |
| MPQ8039GN-AEC1-Z | Monolithic Power Systems Inc. | IC HALF-BRIDGE PWM 8-SOIC | 100% | View |
| MPQ8039GN-AEC1 | Monolithic Power Systems Inc. | IC HALF-BRIDGE PWM 8-SOIC | 100% | View |
| MPQ8039GN-P | Monolithic Power Systems Inc. | IC HALF BRIDGE DRVR 4.25A 8SOIC | 100% | View |
| MPQ8039GN-AEC1-P | Monolithic Power Systems Inc. | IC HALF BRIDGE DRVR 4.25A 8SOIC | 100% | View |
| IRSM807-045MHTR | Infineon Technologies | IC MOTOR DRIVER 500V | 51% | View |
Submit your RFQ for MPQ8039GN and get a quote within 24 hours.
