IC MTR DRV BIPLR 2.7-18V 20TSSOP

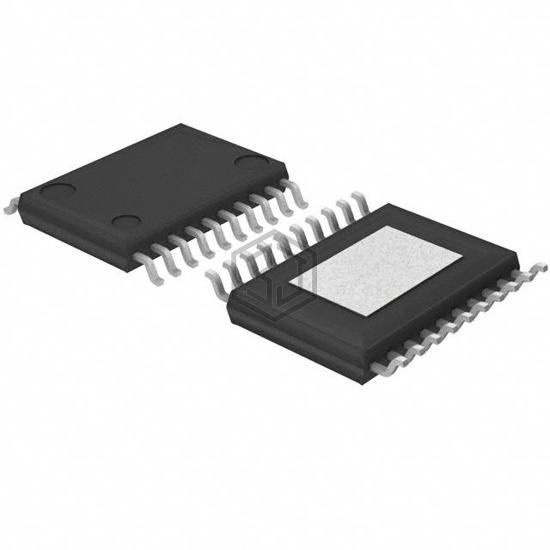

MP6509GF is a PMIC - Motor Drivers, Controllers manufactured by Monolithic Power Systems Inc.. IC MTR DRV BIPLR 2.7-18V 20TSSOP. Key specifications: mounting type Surface Mount, voltage - supply 2.7V ~ 18V, package / case 20-TSSOP (0.173", 4.40mm Width) Exposed Pad, current - output 1.2A.
In Stock: 7,171
| Attribute | Value |
|---|---|
| Product Status | Active |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | Power MOSFET |
| Step Resolution | 1, 1/2 |
| Applications | General Purpose |
| Current - Output | 1.2A |
| Voltage - Supply | 2.7V ~ 18V |
| Voltage - Load | - |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 20-TSSOP-EP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MP6509GF-Z | Monolithic Power Systems Inc. | IC MTR DRV BIPLR 2.7-18V 20TSSOP | 100% | View |
| MP6543CGL-Z | Monolithic Power Systems Inc. | 22V, 1.2A, THREE-PHASE BLDC MOTO | 97% | View |
| MPC17510EJR2 | NXP USA Inc. | IC MOTOR DRIVER 4V-5.5V 24TSSOP | 90% | View |
| L6258EXTR | STMicroelectronics | IC MOTOR DRIVER BIPLR 36POWERSO | 86% | View |
| NCV70522DQ004G | onsemi | IC MOTOR DRIVER BIPOLAR 36SSOP | 86% | View |
| E-L9935013TR | STMicroelectronics | IC MTR DRV BIPOLAR 8-24V 20PWRSO | 73% | View |
Submit your RFQ for MP6509GF and get a quote within 24 hours.
