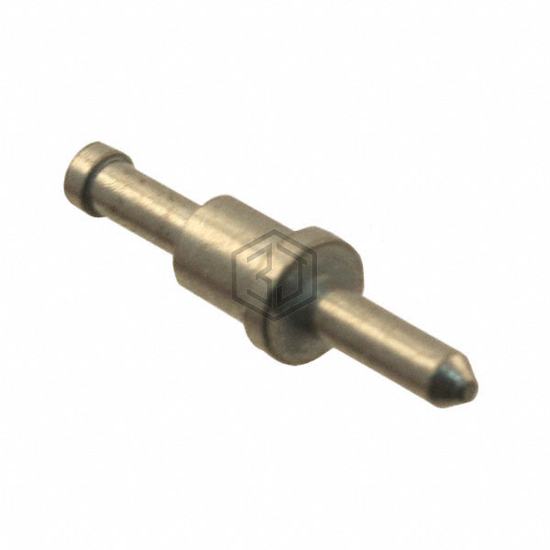

TERM TURRET PIN L=3.81MM
3156-2-00-01-00-00-08-0 is a Terminals - Turret Connectors manufactured by Mill-Max Manufacturing Corp.. TERM TURRET PIN L=3.81MM. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 6,709
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Double End, Pin |
| Number of Turrets | Single |
| Length - Above Board | 0.172" (4.37mm) |
| Length - Below Flange | 0.207" (5.26mm) |
| Length - Overall | 0.379" (9.63mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.093" (2.36mm) |
| Diameter - Turret Head | 0.050" (1.27mm) |
| Staking Side OD | - |
| Staking Side ID | - |
| Mounting Hole Diameter | 0.076" (1.93mm) |
| Board Thickness | 0.062" (1.57mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 200.0µin (5.08µm) |
| Insulation | Non-Insulated |
Submit your RFQ for 3156-2-00-01-00-00-08-0 and get a quote within 24 hours.
