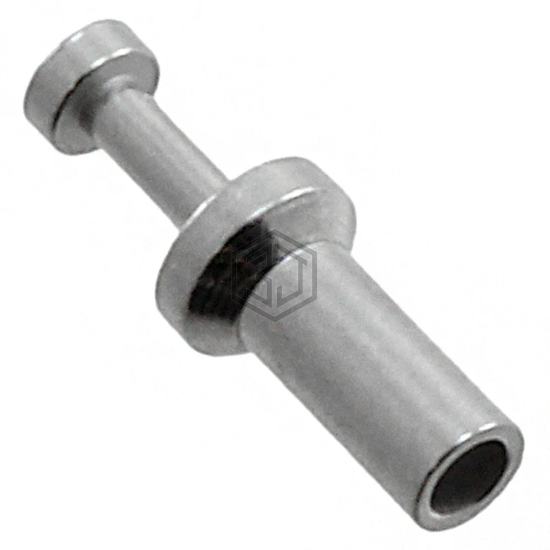

TERM TURRET SINGLE L=3.84MM TIN
2316-3-00-80-00-00-07-0 is a Terminals - Turret Connectors manufactured by Mill-Max Manufacturing Corp.. TERM TURRET SINGLE L=3.84MM TIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 11,888
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single End |
| Number of Turrets | Single |
| Length - Above Board | 0.151" (3.84mm) |
| Length - Below Flange | 0.125" (3.18mm) |
| Length - Overall | 0.276" (7.01mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.094" (2.39mm) |
| Diameter - Turret Head | 0.060" (1.52mm) |
| Staking Side OD | 0.060" (1.52mm) |
| Staking Side ID | 0.042" (1.07mm) |
| Mounting Hole Diameter | 0.064" (1.63mm) |
| Board Thickness | 0.094" (2.39mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin |
| Contact Finish Thickness | 200.0µin (5.08µm) |
| Insulation | Non-Insulated |
Submit your RFQ for 2316-3-00-80-00-00-07-0 and get a quote within 24 hours.
