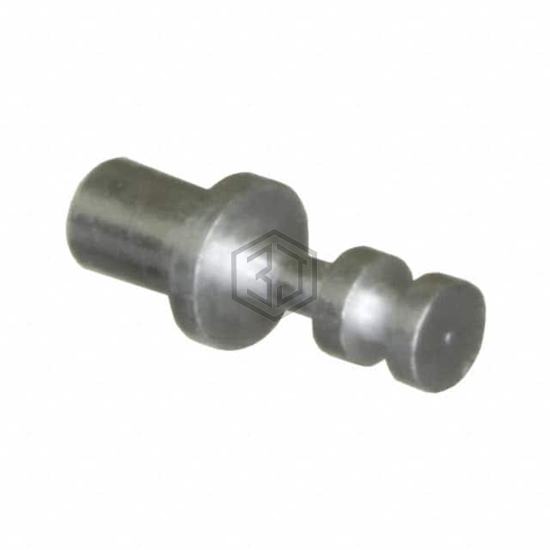

TERM TURRET SINGLE
2308-2-00-80-00-00-07-0 is a Terminals - Turret Connectors manufactured by Mill-Max Manufacturing Corp.. TERM TURRET SINGLE. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 29,747
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single End |
| Number of Turrets | Double |
| Length - Above Board | 0.156" (3.96mm) |
| Length - Below Flange | 0.084" (2.13mm) |
| Length - Overall | 0.240" (6.10mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.094" (2.39mm) |
| Diameter - Turret Head | 0.061" (1.55mm) |
| Staking Side OD | 0.061" (1.55mm) |
| Staking Side ID | 0.044" (1.12mm) |
| Mounting Hole Diameter | 0.064" (1.63mm) |
| Board Thickness | 0.062" (1.57mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin |
| Contact Finish Thickness | 200.0µin (5.08µm) |
| Insulation | Non-Insulated |
Submit your RFQ for 2308-2-00-80-00-00-07-0 and get a quote within 24 hours.
