TERM TURRET SINGLE L=5.84MM

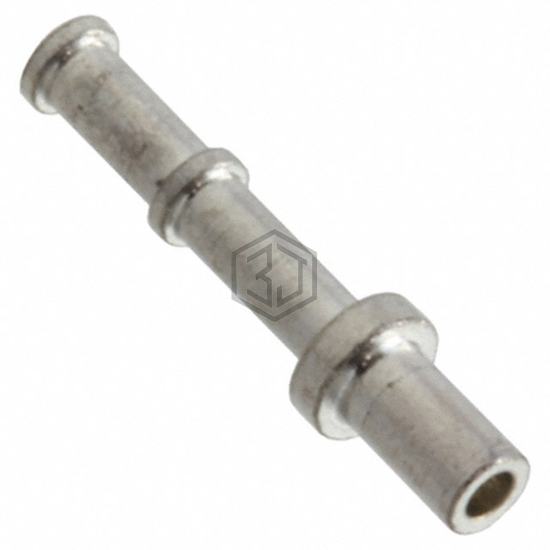

2110-2-00-50-00-00-07-0 is a Terminals - Turret Connectors manufactured by Mill-Max Manufacturing Corp.. TERM TURRET SINGLE L=5.84MM. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 4,092
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single End |
| Number of Turrets | Double |
| Length - Above Board | 0.230" (5.84mm) |
| Length - Below Flange | 0.082" (2.08mm) |
| Length - Overall | 0.312" (7.92mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.070" (1.77mm) |
| Diameter - Turret Head | 0.050" (1.27mm) |
| Staking Side OD | 0.047" (1.19mm) |
| Staking Side ID | 0.029" (0.74mm) |
| Mounting Hole Diameter | 0.052" (1.32mm) |
| Board Thickness | 0.062" (1.57mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 300.0µin (7.62µm) |
| Insulation | Non-Insulated |
Submit your RFQ for 2110-2-00-50-00-00-07-0 and get a quote within 24 hours.
