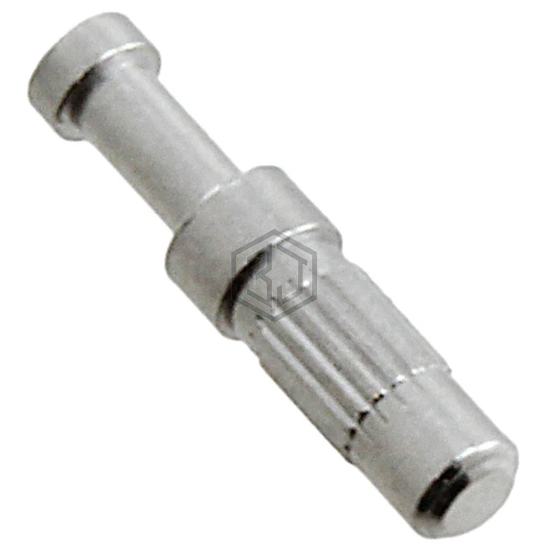

TERM TURRET SINGLE L=3.43MM TIN
2101-3-00-80-00-00-07-0 is a Terminals - Turret Connectors manufactured by Mill-Max Manufacturing Corp.. TERM TURRET SINGLE L=3.43MM TIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Press-Fit, Knurled.
In Stock: 3,127
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single End |
| Number of Turrets | Single |
| Length - Above Board | 0.135" (3.43mm) |
| Length - Below Flange | 0.130" (3.30mm) |
| Length - Overall | 0.265" (6.73mm) |
| Mounting Type | Through Hole |
| Termination | Press-Fit, Knurled |
| Flange Diameter | 0.063" (1.60mm) |
| Diameter - Turret Head | 0.053" (1.35mm) |
| Staking Side OD | - |
| Staking Side ID | - |
| Mounting Hole Diameter | 0.053" (1.35mm) |
| Board Thickness | 0.062" ~ 0.094" (1.57mm ~ 2.39mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin |
| Contact Finish Thickness | 200.0µin (5.08µm) |
| Insulation | Non-Insulated |
Submit your RFQ for 2101-3-00-80-00-00-07-0 and get a quote within 24 hours.
