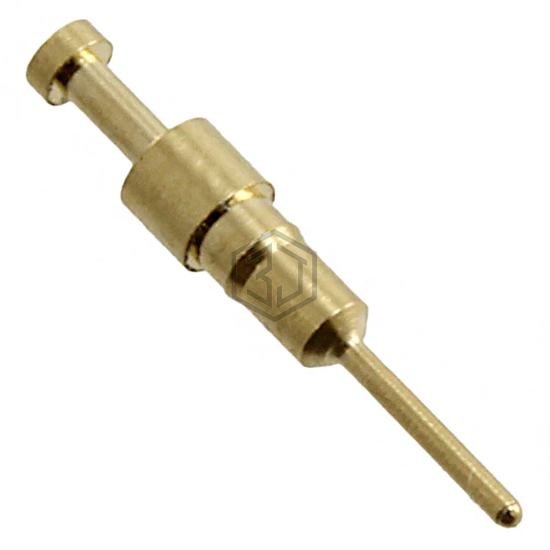

TERM TURRET PIN L=4.01MM GOLD
0700-0-00-15-00-00-03-0 is a Terminals - Turret Connectors manufactured by Mill-Max Manufacturing Corp.. TERM TURRET PIN L=4.01MM GOLD. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Press-Fit, Barbed.
In Stock: 1,815
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Double End, Pin |
| Number of Turrets | Single |
| Length - Above Board | 0.158" (4.01mm) |
| Length - Below Flange | 0.259" (6.58mm) |
| Length - Overall | 0.417" (10.59mm) |
| Mounting Type | Through Hole |
| Termination | Press-Fit, Barbed |
| Flange Diameter | 0.072" (1.83mm) |
| Diameter - Turret Head | 0.053" (1.35mm) |
| Staking Side OD | - |
| Staking Side ID | - |
| Mounting Hole Diameter | 0.057" (1.45mm) |
| Board Thickness | - |
| Contact Material | Brass Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Insulation | Non-Insulated |
Submit your RFQ for 0700-0-00-15-00-00-03-0 and get a quote within 24 hours.
