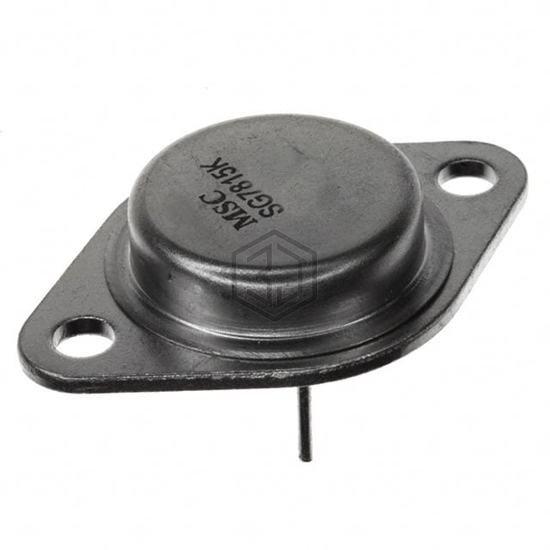

IC REG LINEAR 15V 1.5A TO204AD
SG7815K is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LINEAR 15V 1.5A TO204AD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case TO-204AA, TO-3, current - supply (max) 7 mA.
In Stock: 6,864
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 15V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 2.5V @ 500mA |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | - |
| Current - Supply (Max) | 7 mA |
| PSRR | 60dB (120Hz) |
| Control Features | Current Limit, Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | TO-204AA, TO-3 |
| Supplier Device Package | TO-204AD (TO-3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SG7815IG-883B | Microchip Technology | IC REG LINEAR 15V 1.5A TO257 | 100% | View |
| SG7815IG | Microchip Technology | IC REG LINEAR 15V 1.5A TO257 | 100% | View |
| SG7812IG | Microchip Technology | IC REG LINEAR 12V 1.5A TO257 | 93% | View |
| SG7812T-883B | Microchip Technology | IC REG LINEAR 12V 1.5A TO39 | 93% | View |
| SG7815AT | Microchip Technology | IC REG LINEAR 15V 1.5A TO39 | 89% | View |
| SG7815AK-883B | Microchip Technology | IC REG LINEAR 15V 1.5A TO204AD | 89% | View |
Submit your RFQ for SG7815K and get a quote within 24 hours.
