IC REG LINEAR 15V 1.5A TO39

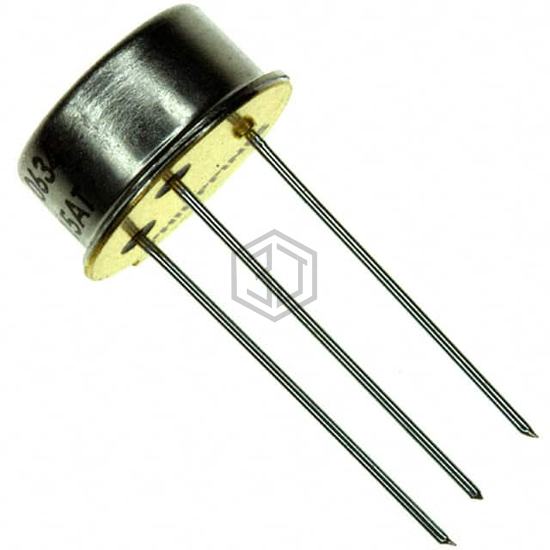

SG7815AT is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LINEAR 15V 1.5A TO39. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case TO-205AD, TO-39-3 Metal Can, current - supply (max) 7 mA.
In Stock: 5,019
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 50V |
| Voltage - Output (Min/Fixed) | 15V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 2.5V @ 500mA |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | - |
| Current - Supply (Max) | 7 mA |
| PSRR | 60dB (120Hz) |
| Control Features | Current Limit, Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | TO-205AD, TO-39-3 Metal Can |
| Supplier Device Package | TO-39 |
