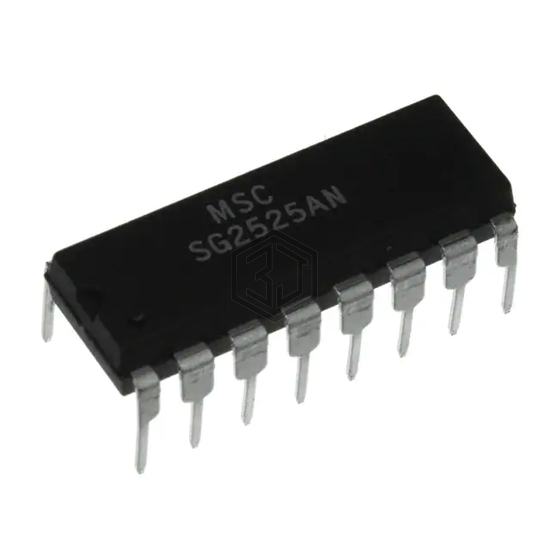

IC REG CTRLR PUSH-PULL 16DIP
SG2525AN is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Microchip Technology. IC REG CTRLR PUSH-PULL 16DIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C (TA), voltage - supply (vcc/vdd) 8V ~ 35V, package / case 16-DIP (0.300", 7.62mm).
In Stock: 632
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Push-Pull |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 35V |
| Frequency - Switching | 100Hz ~ 350kHz |
| Duty Cycle (Max) | 49% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Soft Start |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
SG2525AN is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SG1525AJ-883B | Microchip Technology | IC REG CTRLR PUSH-PULL 16JDIP | 100% | View |
| SG1525AJ | Microchip Technology | IC REG CTRLR PUSH-PULL 16DIP | 100% | View |
| SG1525AJ-DESC | Microchip Technology | IC REG CTRLR PUSH-PULL 16JDIP | 100% | View |
| SG1525AJ-JAN | Microchip Technology | VOLTAGE MODE PWMS, | 100% | View |
| SG2524BN | Microchip Technology | IC REG CTRLR FLYBACK 16DIP | 70% | View |
Submit your RFQ for SG2525AN and get a quote within 24 hours.
