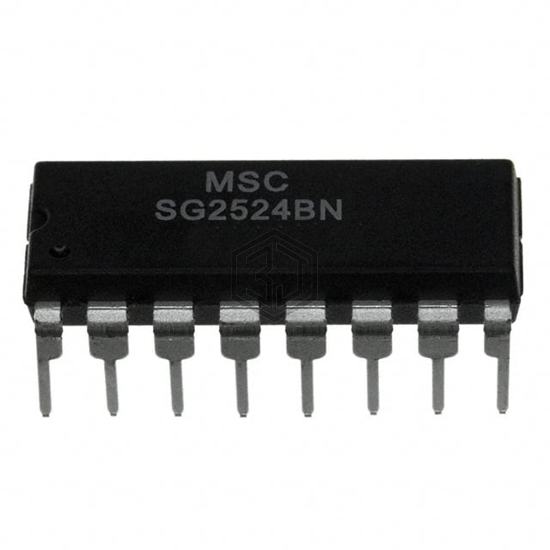

IC REG CTRLR FLYBACK 16DIP
SG2524BN is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Microchip Technology. IC REG CTRLR FLYBACK 16DIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C (TA), voltage - supply (vcc/vdd) 7V ~ 40V, package / case 16-DIP (0.300", 7.62mm).
In Stock: 9,446
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Flyback |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 40V |
| Frequency - Switching | 50Hz ~ 600kHz |
| Duty Cycle (Max) | 49% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
SG2524BN is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SG2525AN | Microchip Technology | IC REG CTRLR PUSH-PULL 16DIP | 70% | View |
| SG1525AJ-883B | Microchip Technology | IC REG CTRLR PUSH-PULL 16JDIP | 70% | View |
| SG1525AJ | Microchip Technology | IC REG CTRLR PUSH-PULL 16DIP | 70% | View |
| SG1525AJ-DESC | Microchip Technology | IC REG CTRLR PUSH-PULL 16JDIP | 70% | View |
| SG1525AJ-JAN | Microchip Technology | VOLTAGE MODE PWMS, | 70% | View |
Submit your RFQ for SG2524BN and get a quote within 24 hours.
