PM-MOSFET-SIC-SBD~-SP1F

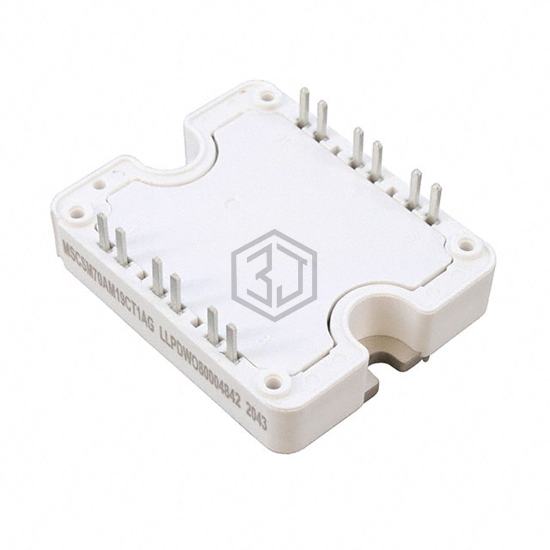

MSCSM70AM19CT1AG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. PM-MOSFET-SIC-SBD~-SP1F. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module, power - max 365W (Tc).
In Stock: 11
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N Channel (Phase Leg) |
| FET Feature | Silicon Carbide (SiC) |
| Drain to Source Voltage (Vdss) | 700V |
| Current - Continuous Drain (Id) @ 25°C | 124A (Tc) |
| Rds On (Max) @ Id, Vgs | 19mOhm @ 40A, 20V |
| Vgs(th) (Max) @ Id | 2.4V @ 4mA |
| Gate Charge (Qg) (Max) @ Vgs | 215nC @ 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4500pF @ 700V |
| Power - Max | 365W (Tc) |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | SP1F |
Submit your RFQ for MSCSM70AM19CT1AG and get a quote within 24 hours.
