PM-MOSFET-SIC-SBD~-SP6P

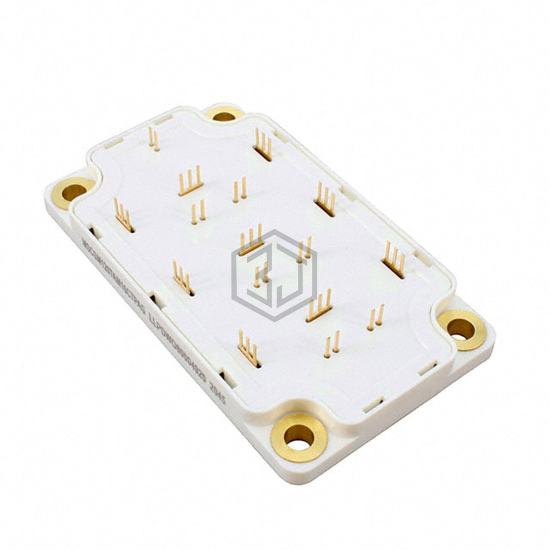

MSCSM120TAM11CTPAG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. PM-MOSFET-SIC-SBD~-SP6P. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module, power - max 1.042kW (Tc).
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 6 N-Channel (3-Phase Bridge) |
| FET Feature | Silicon Carbide (SiC) |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Current - Continuous Drain (Id) @ 25°C | 251A (Tc) |
| Rds On (Max) @ Id, Vgs | 10.4mOhm @ 120A, 20V |
| Vgs(th) (Max) @ Id | 2.8V @ 3mA |
| Gate Charge (Qg) (Max) @ Vgs | 696nC @ 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 9060pF @ 1000V |
| Power - Max | 1.042kW (Tc) |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | SP6-P |
Submit your RFQ for MSCSM120TAM11CTPAG and get a quote within 24 hours.
