PM-MOSFET-SIC-SBD~-SP6C LI

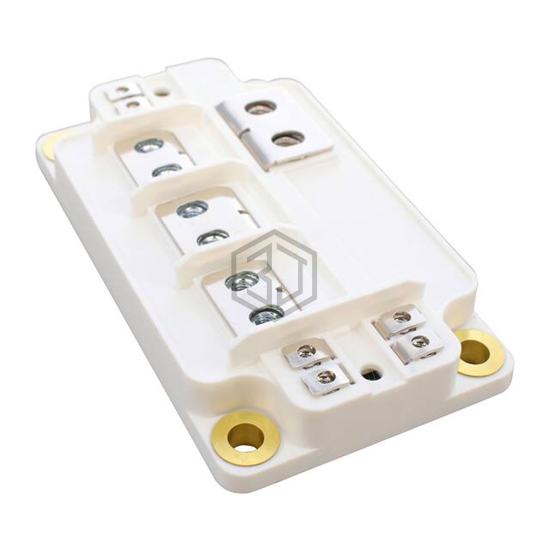

MSCSM120AM03CT6LIAG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. PM-MOSFET-SIC-SBD~-SP6C LI. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module, power - max 3.215kW (Tc).
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N Channel (Phase Leg) |
| FET Feature | Silicon Carbide (SiC) |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Current - Continuous Drain (Id) @ 25°C | 805A (Tc) |
| Rds On (Max) @ Id, Vgs | 3.1mOhm @ 400A, 20V |
| Vgs(th) (Max) @ Id | 2.8V @ 10mA |
| Gate Charge (Qg) (Max) @ Vgs | 2320nC @ 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 30200pF @ 1kV |
| Power - Max | 3.215kW (Tc) |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | SP6C LI |
Submit your RFQ for MSCSM120AM03CT6LIAG and get a quote within 24 hours.
