CARDBUS POWER CONTROLLER

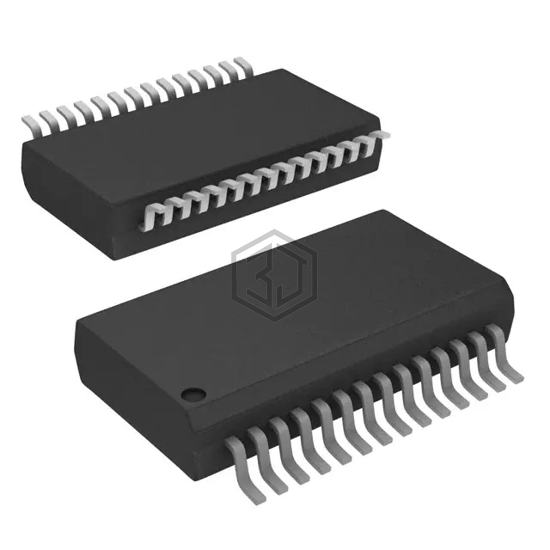

MIC2563A-1BSM is a PMIC - Power Distribution Switches, Load Drivers manufactured by Microchip Technology. CARDBUS POWER CONTROLLER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 28-SSOP (0.209", 5.30mm Width).
In Stock: 1,655
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | PCMCIA Switch |
| Number of Outputs | 4 |
| Ratio - Input:Output | 3:4 |
| Output Configuration | Low Side |
| Output Type | N-Channel |
| Interface | Logic |
| Voltage - Load | 3.3V, 5V, 12V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 200mA |
| Rds On (Typ) | 1.8Ohm |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-SSOP |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
MIC2563A-1BSM is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MIC2563A-0YSM | Microchip Technology | IC PWR SWITCH N-CHAN 3:4 28SSOP | 100% | View |
| MIC2563A-1YSM | Microchip Technology | IC PWR SWITCH N-CHAN 3:4 28SSOP | 100% | View |
| MIC2562A-1YM-TR | Microchip Technology | IC PWR SWITCH N-CHAN 3:2 14SOIC | 88% | View |
| MIC2562A-0YM-TR | Microchip Technology | IC PWR SWITCH N-CHAN 3:2 14SOIC | 88% | View |
| MIC2562A-0YM | Microchip Technology | IC PWR SWITCH N-CHAN 3:2 14SOIC | 88% | View |
| MIC2562A-0BTS | Microchip Technology | PCMCIA/CARDBUS SOCKET POWER CONT | 88% | View |
Submit your RFQ for MIC2563A-1BSM and get a quote within 24 hours.
