HIGH SPEED PWM CONTROLLER W/ DIM

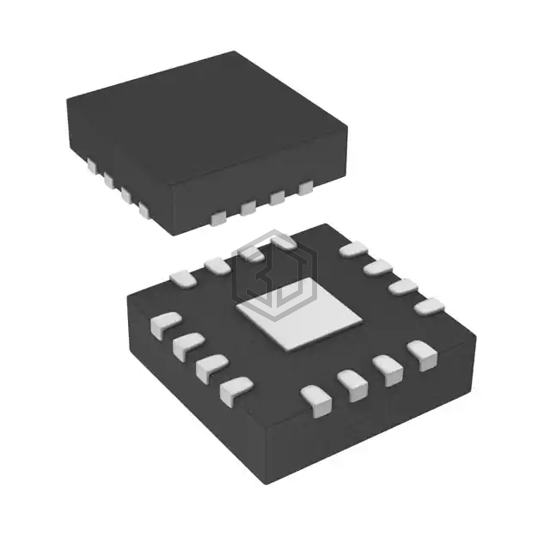

MCP1633-E/MG is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Microchip Technology. HIGH SPEED PWM CONTROLLER W/ DIM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 16-VFQFN Exposed Pad.
In Stock: 383
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Cuk, Flyback, SEPIC |
| Number of Outputs | 1 |
| Output Phases | - |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Frequency - Switching | 200kHz ~ 2.2MHz |
| Duty Cycle (Max) | 90% |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5022MMX/NOPB | Texas Instruments | IC REG CTRLR BOOST/SEPIC 10MSOP | 90% | View |
| MAX16990ATCD/V+ | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BOOST/SEPIC 12TQFN | 90% | View |
| LM5022QDGSTQ1 | Texas Instruments | IC REG CTRLR BOOST/SEPIC 10VSSOP | 90% | View |
| LM5022MME/NOPB | Texas Instruments | IC REG CTRLR BOOST/SEPIC 10MSOP | 90% | View |
| LM5022MM/NOPB | Texas Instruments | IC REG CTRLR BOOST/SEPIC 10MSOP | 90% | View |
| LM5022QDGSRQ1 | Texas Instruments | IC REG CTRLR BOOST/SEPIC 10VSSOP | 90% | View |
Submit your RFQ for MCP1633-E/MG and get a quote within 24 hours.
